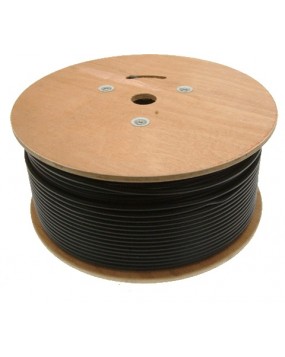

100m Black CT165 Trunk Coax Cable LSZH
1.65mm Black LSZH Sheath
100m Black
LOW SMOKE EMISSIONS
Many local authorities and government bodies specify that cables installed must be of Low Smoke and Fume (LSF), or Low Smoke Zero Halogen (LSZH) construction. LSZH types are available from stock.
Construction Data
| Inner Conductor | Diameter mm | Dielectric | Diameter mm | Outer Conductor (Tape) | Tape Coverage % | Braid | Braid coverage % | Diameter over braid mm | Flooding Compound | Outer Sheath | Other Sheath Options | Diameter mm | Min bending radius indoor/outdoor mm | Pulling Strength N | Min. Operating Temp | Weight Kg/1000m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cu | 1.65 | FoamPE | 7.2 | Cu | 100 | Cu/Pet | 65 | 7.8 | PJ | LSZH | PVC/PE/LSZH | 10.1 | 100 | 300N | -40/+80 | 88 |
