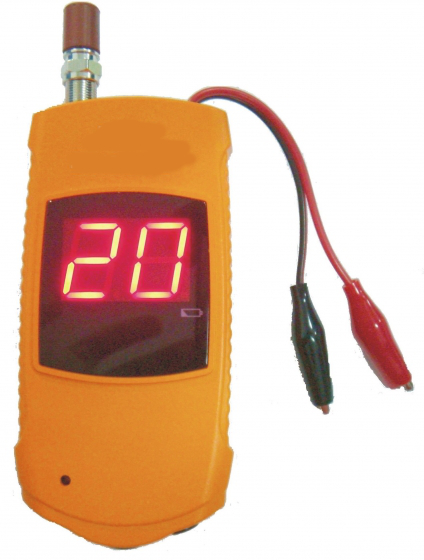

The LED displays the unique number of the remote identifier attached to the other end of the cable run. If it detects a short, the LED displays “SH”. When voltage is detected,”lightning

bolts” appear. To conserve battery life, unit powers down automatically if the connection

is not removed in approximately 2.5 minutes.

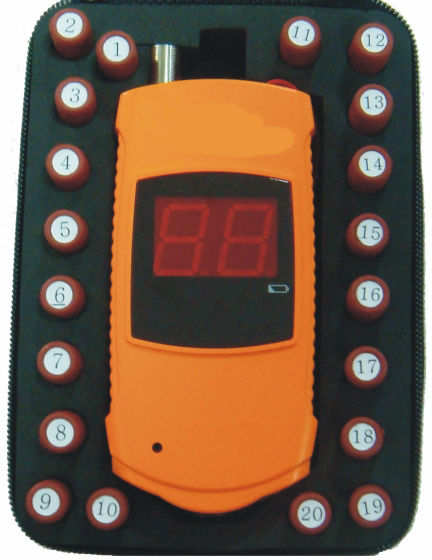

♦ Map up to 20 audio, coax, or security/alarm cable runs at a time

♦ High intensity LED display readable in any lighting environment

♦ Auto-On and Auto-Off

♦ Low Battery Indicator

♦ Voltage Detection and Warning

♦ A short circuit is detected, “SH” is displayed

♦ Alligator Clip and F-connector contacts

♦ Maximum cable length for testing: 4000 Ft (Approx 1,200m)

♦ Maximum DC cable resistance: 100 Ohms

♦ Battery: 3 x 3V CR2302 Batteries





Note: Do not connect to live AC circuits. This could cause an extreme hazard and damage the CM20.
