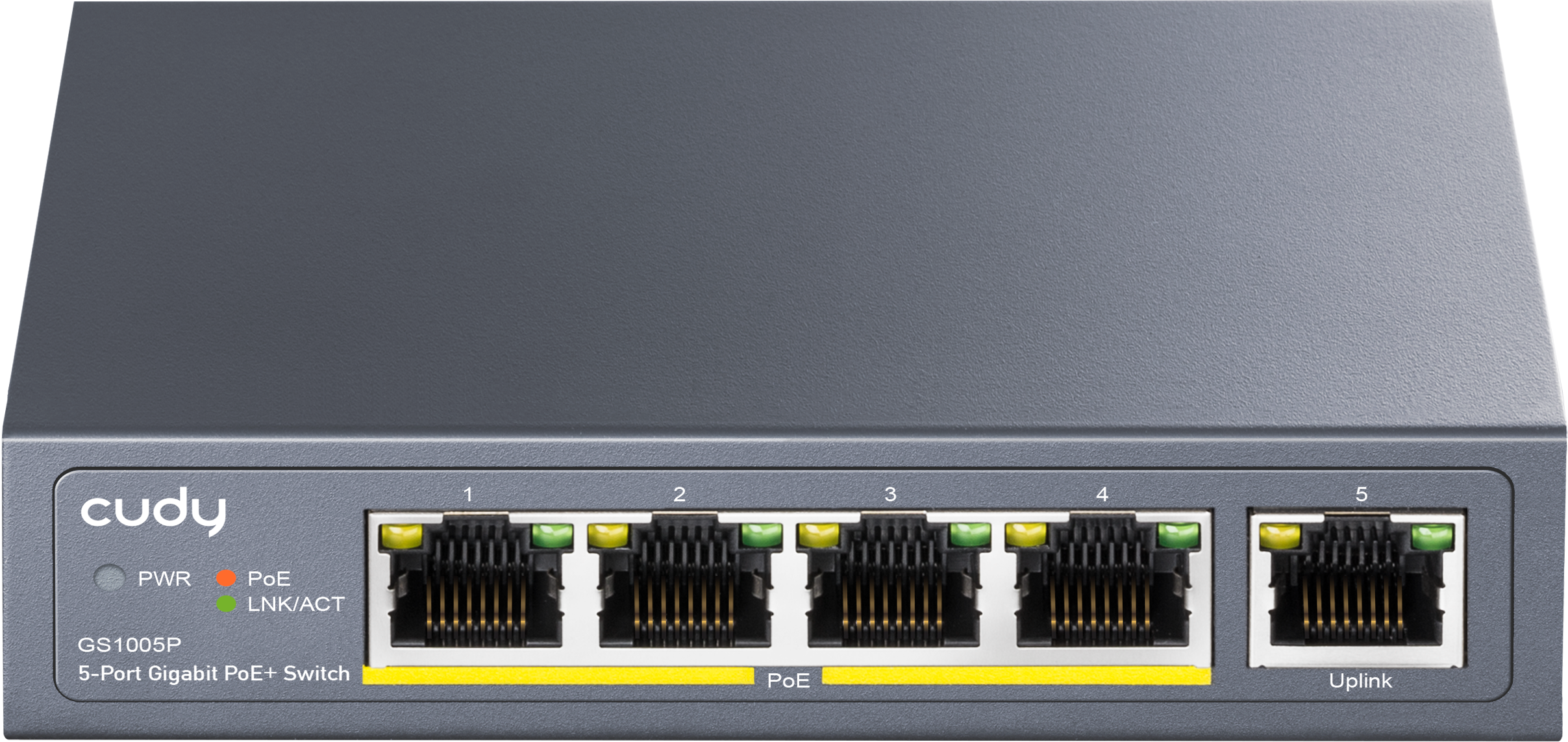

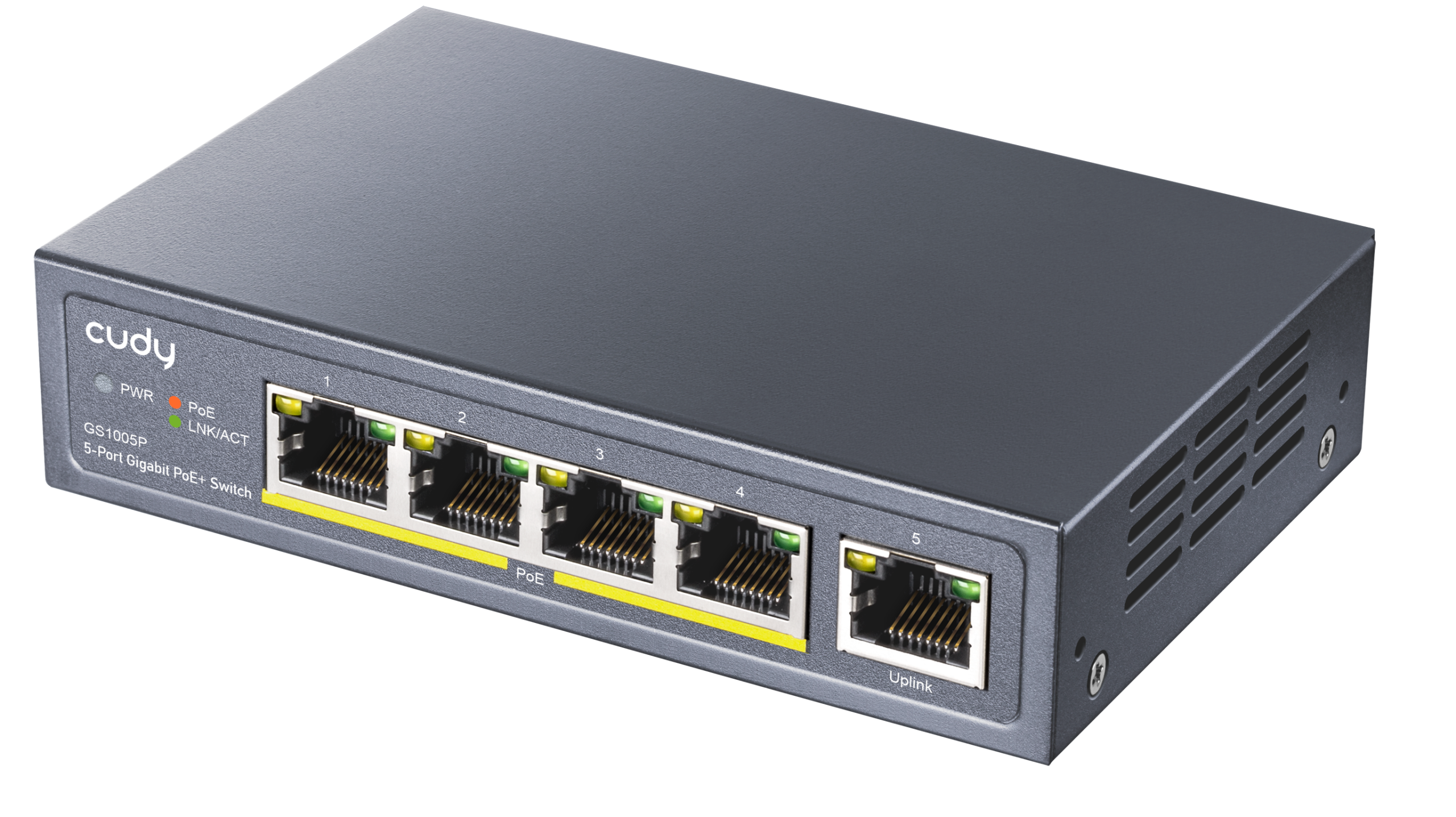

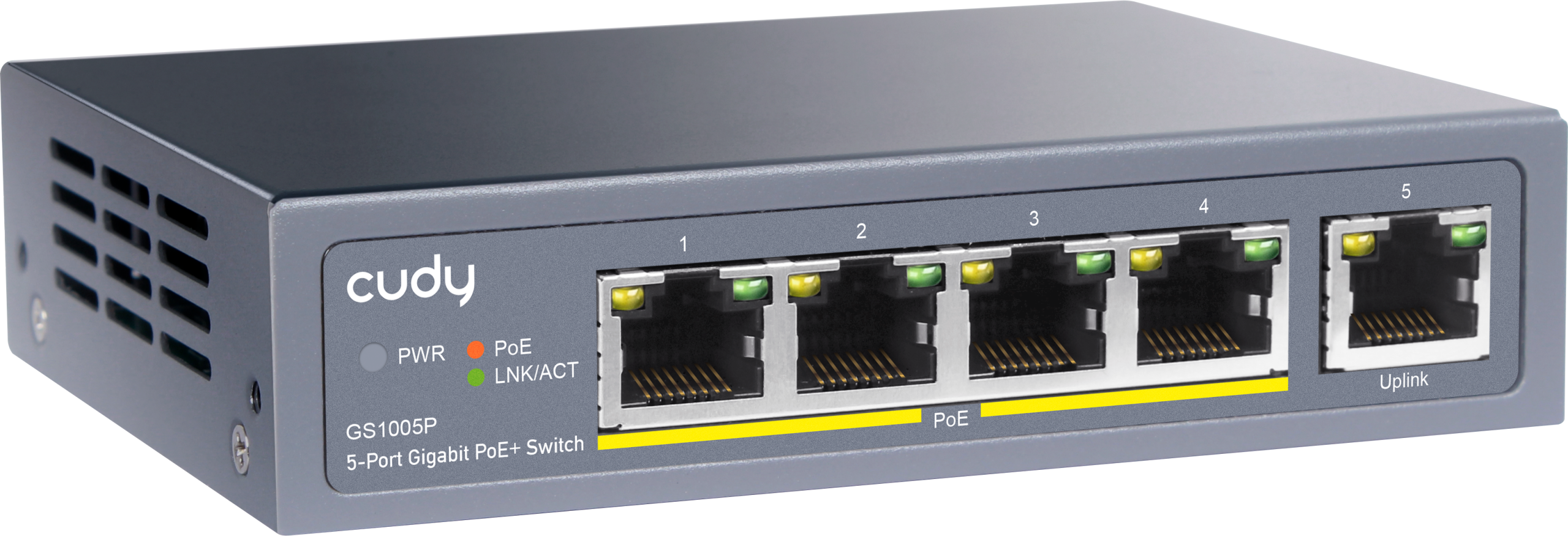

Cudy 5 Port Gigabit PoE Switch 60W
● Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
● Provides 5 x 10/100/1000Base-TX ports
● 60W PoE power budget
● High back-plane bandwidth 10Gbps
● IEEE802.3x Flow control
● EMI standards complies with FCC, CE class B
Specifications:
| Item | Description | |||
| Power | Power supply | External Power Adaptor | ||
| Voltage Range | DC48~57V | |||
| Switch Consumption | <5W | |||
| Ethernet | Speed | 1~5 Port : 10/100/1000Mbps | ||
| Uplink: 10/100/1000Mbps | ||||
| Transmission Distanc | 100Meter (328ft) | |||
| Network Switch | Ethernet Standard | IEEE 802.3/802.3u/802.3ab/802.3af/at | ||
| Switching capacity | 10G | |||
| Transfer Rate | 14,880pps for 10Mbps | |||
| 148,800pps for 100Mbps | ||||
| 1,488,000pps for 1000Mbps | ||||
| MAC Address | 2K MAC address table | |||
| LINK/ACT | On | Green | The port is connecting | |
| Blinks | – | The port is receiving or transmitting data | ||
| Off | – | The port is not linked successfully with the device | ||
| POE | On | Orange | PD is connected | |
| OFF | – | No PD is connected or power forwarding fails | ||
| Capacity | 60W | |||
| PoE pin assignmnet | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |||
| Environment | Working Temperature | 0~40℃ | ||
| Storage Temperature | -40~70℃ | |||
| Humidity Non condesing | 0~90% | |||
| Mechanical | Dimension | 119 x 85 x 28mm | ||
| Color | Gray | |||
