Description

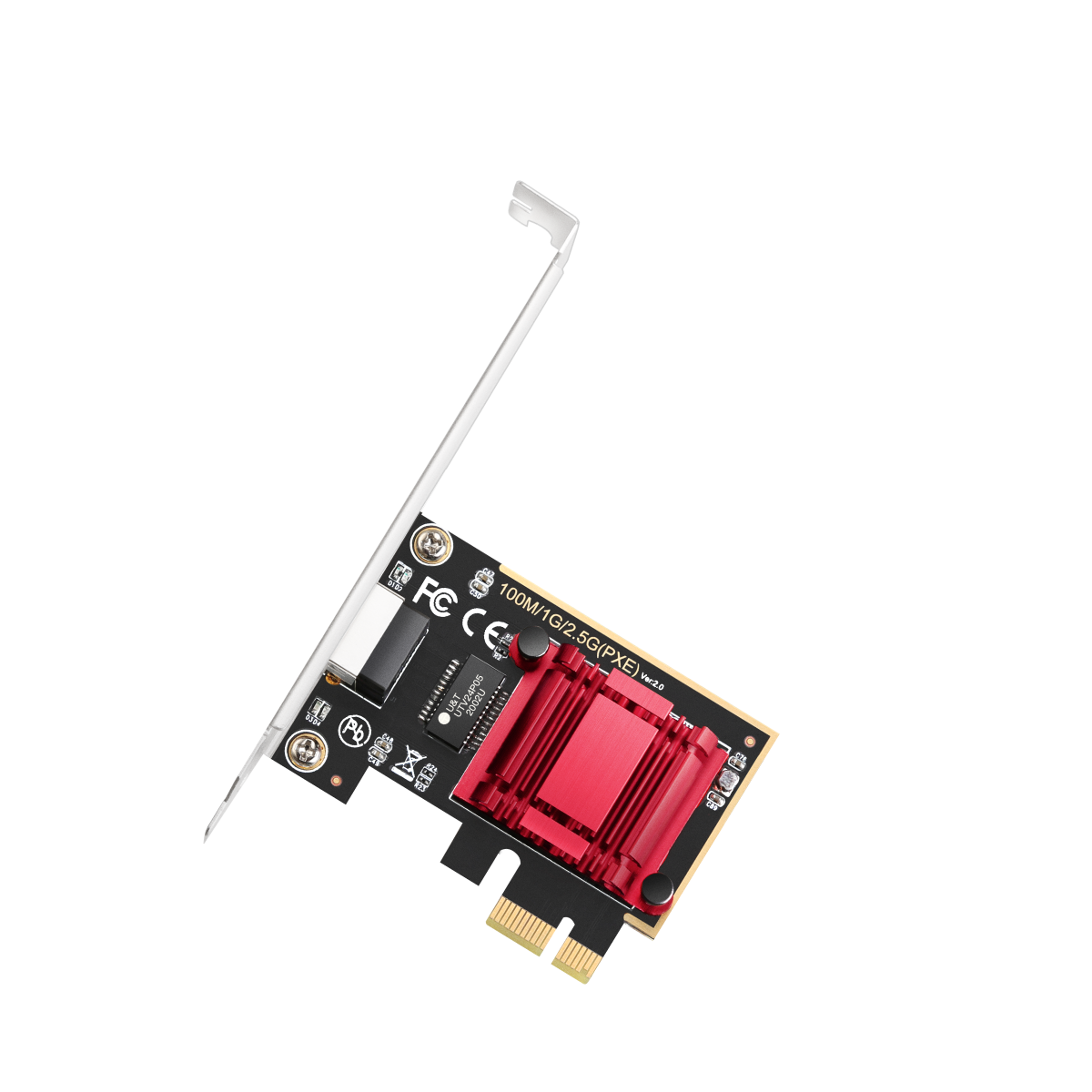

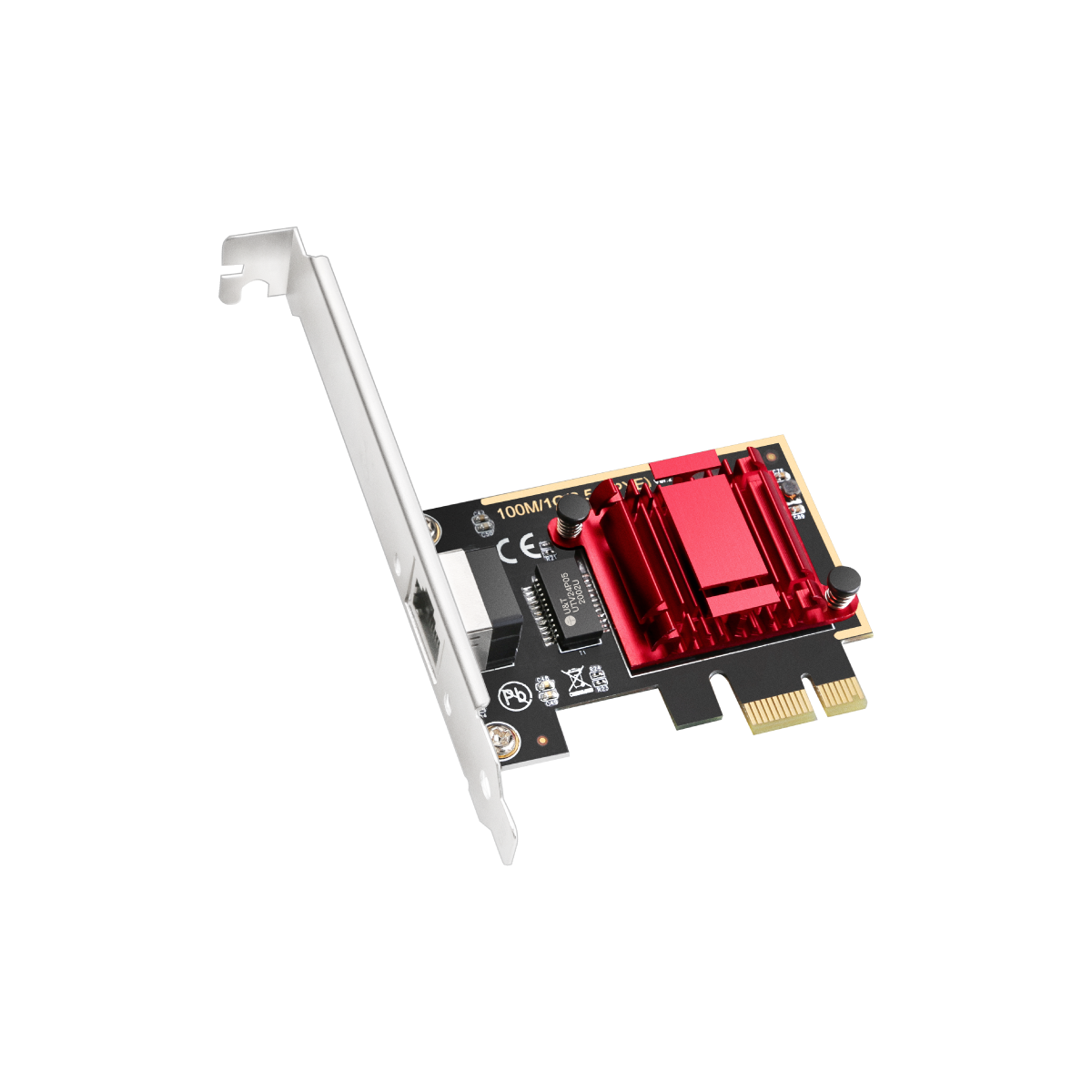

Cudy PE25 2.5 Gbps PCI-E RJ45 Ethernet Adapter

PE25 1.0

A NIC for equipping your PC with 2.5G wired connectivity, featuring WoL function.

10/100/1000/2500 Mbps Ethernet Port
Wake on LAN, Flow Control
Standard/Low-Profile Bracket

Model Version	PE25 1.0
CPU	Chipset	RTL8125BG
Interfaces	2.5G RJ45 Ports	1
	LED	Speed/Link/ACT of Ethernet Port
Requirements	Hardware Requirement	Requires a PCI-E 1.1 x1 or higher slot on the motherboard for powering and the Ethernet function.
	Compatible OS	Windows 7/8/8.1/10/11 WindowsServer 2012~2022 Linux DSM 7.2+
	Driver Installation	Manual driver installation is required. Driver is available from the Download Center.
Reliability	Environment	Ambient Operating Temperature: 0 ℃ ~ 70 ℃ (32 ℉ ~158 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications	FCC, CE
Mechanical	Dimension	67.3×56×17 mm 2.65×2.2×0.67 inches
Package Content	PE25 Low-Profile Bracket Installation Guide
Ordering Information	Retail Package Weight	151 g (5.33 oz.)
	Carton Net Weight	13.2 kg (29.1 lbs)
	Carton Gross Weight	15.3 kg (33.73 lbs)
