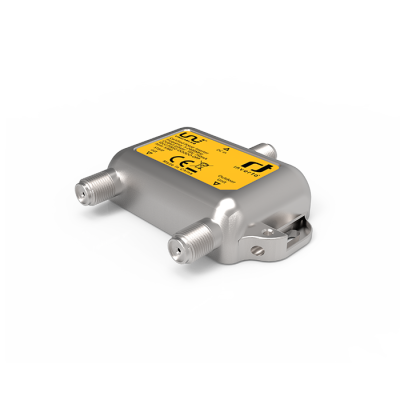

Inverto Unicable II Power Inserter

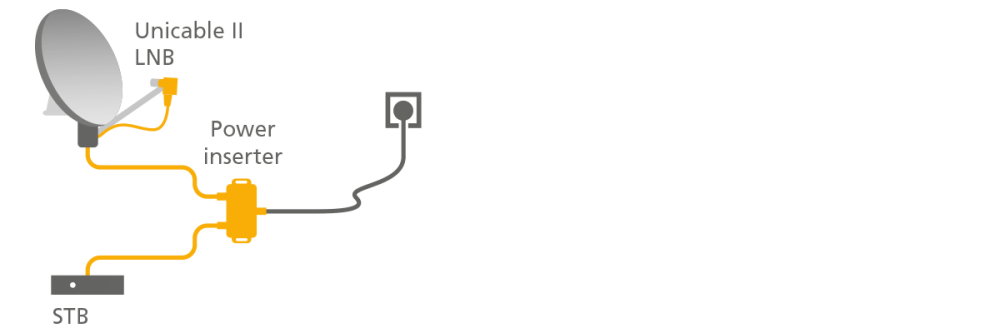

This power inserter is designed to power a Unicable II LNB or an output port of a Unicable II multiswitch unit and the connected Quattro / Wideband LNB in cases where the connected STB is not able to provide the required power for the LNB / multiswitch output port. It provides a constant DC voltage to the LNB / multiswitch output port without loading the STB and passes the STB’s DiSEqC/EN50494/EN50607 commands to the LNB / multiswitch output port unit.
| Technical specifications | |
|---|---|
| Frequency range | 5 – 2400 MHz |
| DC in | 19V/1A, 1x F-type, female |
| ODU input (IF) | 1x F-type, female |
| STB output (IF) | 1x F-type, female |
| Insertion loss | 3 dB max. |
| Input return loss | -10 dB max. |
| Output return loss | -10 dB max. |
| Maximal current flow-through | 750 mA |
| Output voltage | 17 V (Input @19V, 940mA) |
| Operating temperature | -30 °C ~ +60 °C |
| Weight | 81 g |
| Dimensions (W x D x H) | 65 mm x 75 mm x 17.3mm |
