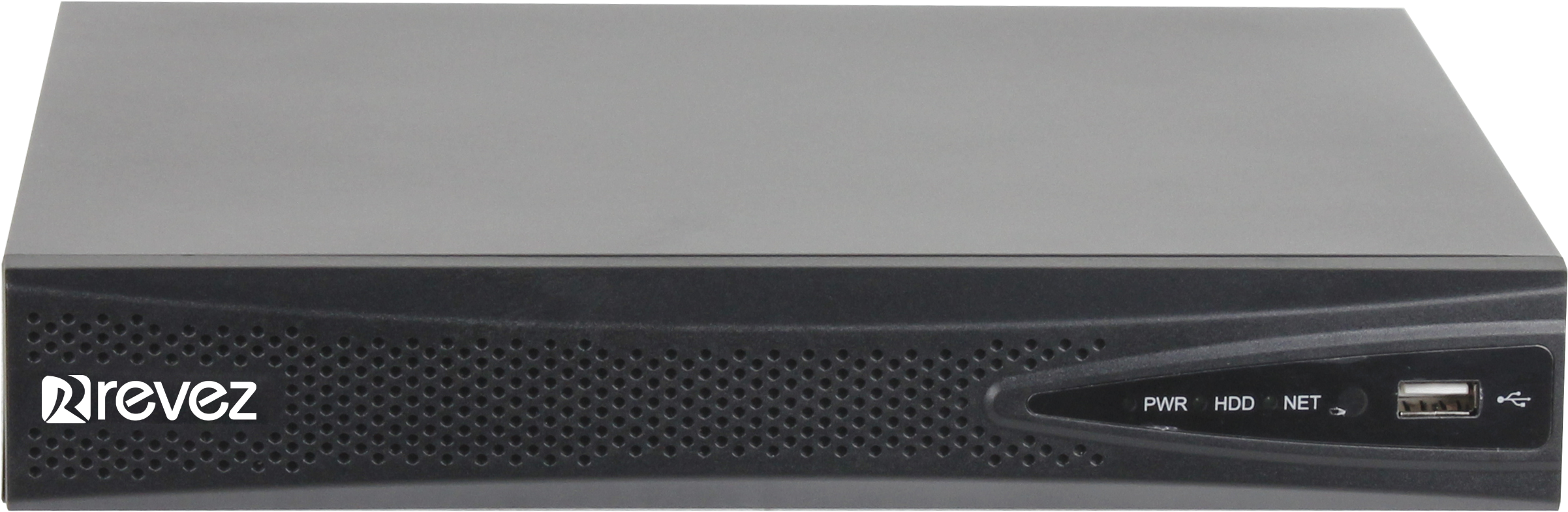

Revez RAPID-4 NVR
4 Channel Network Video Recorder
Latest model Revez NVR suitable for Revez IP Cameras.
This new model has POE built in and Cloud P2P allowing easy mobile access via the Android/iPhone apps.
Features:
- 4 Channel Network Video Recorder
- 4 Channels Camera Input 6MP/5MP/4MP/3MP/1080P/720P/4CIF
- 1 Channel Realtime Display 6MP/5MP/4MP/3MP – 4 Channels 1080P/720P/4CIF
- 4 Channels 1080P/720P/4CIF Synced Playback
- Third Party ONVIF Network Cameras Supported
- Up to 6MP Resolution Recording Supported
- Plug & Play with up to 4 Independant PoE Network Interfaces
- Supports 4 Channel Intelligent Analysis Process
- Smart Search & Recording Option
- Supports 1 SATA HDD up to 6TB Capacity, Alarm I/O, Audio 1/O, 2 USB Ports
Specifications:
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Two-way Audio Input | 1-ch, AUX3.5mm |
| Network | |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Connection | 32-ch Access |
| Internet Protocol | TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/HTTPS/RTSP/SMTP/SADP/SNMP |
| Video/Audio Output | |
| HDMI Output | 1-ch, Resolution 1920*1080P/60Hz, 1920*1080P/50Hz, 1280*800/60Hz, 1440*900/60Hz,1366*768/60Hz, 1280*720/60Hz, 1280*720/50Hz,1024*768/60Hz,800*600/60Hz |
| VGA Output | 1-ch, Resolution 1920*1080P/60Hz, 1920*1080P/50Hz, 1280*800/60Hz, 1440*900/60Hz,1366*768/60Hz, 1280*720/60Hz, 1280*720/50Hz,1024*768/60Hz,800*600/60Hz |
| Frame Rate | Mainstream 25fps(P)/30fps(N) Substream 25fps(P)/30fps(N) |
| I-Frame Record | Y |
| Recording Resolution | 6MP(2752*2208,3008*2008,2408*2008)/5MP(2448*2048,2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520)/QSXGA(2560*2045)/3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output | 1-ch, RCA (Linear, 1kΩ) |
| Synchronous Playback | 4-ch1080P/720P/4CIF |
| Decoding | |
| Live View/Playback | 6MP(2752*2208,3008*2008,2408*2008)/5MP(2448*2048,2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520)/QSXGA(2560*2045)/3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 1-ch 6MP/5MP/4MP/3MP/4-ch1080P/720P |
| Display Split | 1/4 |
| E-Zoom | Y |
| Hard Disk | |
| SATA | 1 SATA for 1 HDD |
| Capacity | Up to 6TB Capacity for Each HDD |
| NTFS Files System | Y |
| HDD Management | Group and Quota |
| External Interface | |
| Network Interface | 1 RJ-45 100/1000 Self-adaptive Ethernet Interfaces |
| USB Interface | 1 x USB2.0, 1 x USB3.0 |
| Alarm In | N/A |
| Alarm Out | 1-ch |
| POE | |
| Interface | 4 Independent 100 Mbps PoE Network Interfaces |
| Max Power | 45W(50W Optional), Max to 30W for Each Port |
| Supported Standard | AF and AT |
| Advanced | |
| IPC Management | IPC Centralized Management |
| Plug and Play | Y, Only for Revez Cameras |
| Corridor Mode | Y, 169 to 916, Only for Revez Cameras |
| Video Analytics(IVA) | 4-ch Revez Camera IVA Process (Tripwire and Perimeter) |
| Smart Search | Quickly Search Target IVA Videos , Only for Revez Cameras |
| Smart Recording | Manual/Timing/Motion Detection/Alarm/Redundant Backup/Holiday/I-frame Storage |
| Onvif | Onvif (Profile S) |
| General | |
| Languge | English, Spanish, Korean, Italian, Turkish, Thai, Russian, Simple Chinese, Traditional Chinese |
| Power Supply | DC 48V |
| Consumption(without HDD and POE) | ≤20W |
| Working Temperature | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 1U |
| Dimensions | 255mm x 231mm x 44mm |
| Weight | 1KG (without HDD), 1.5KG (with Packing Box) |
