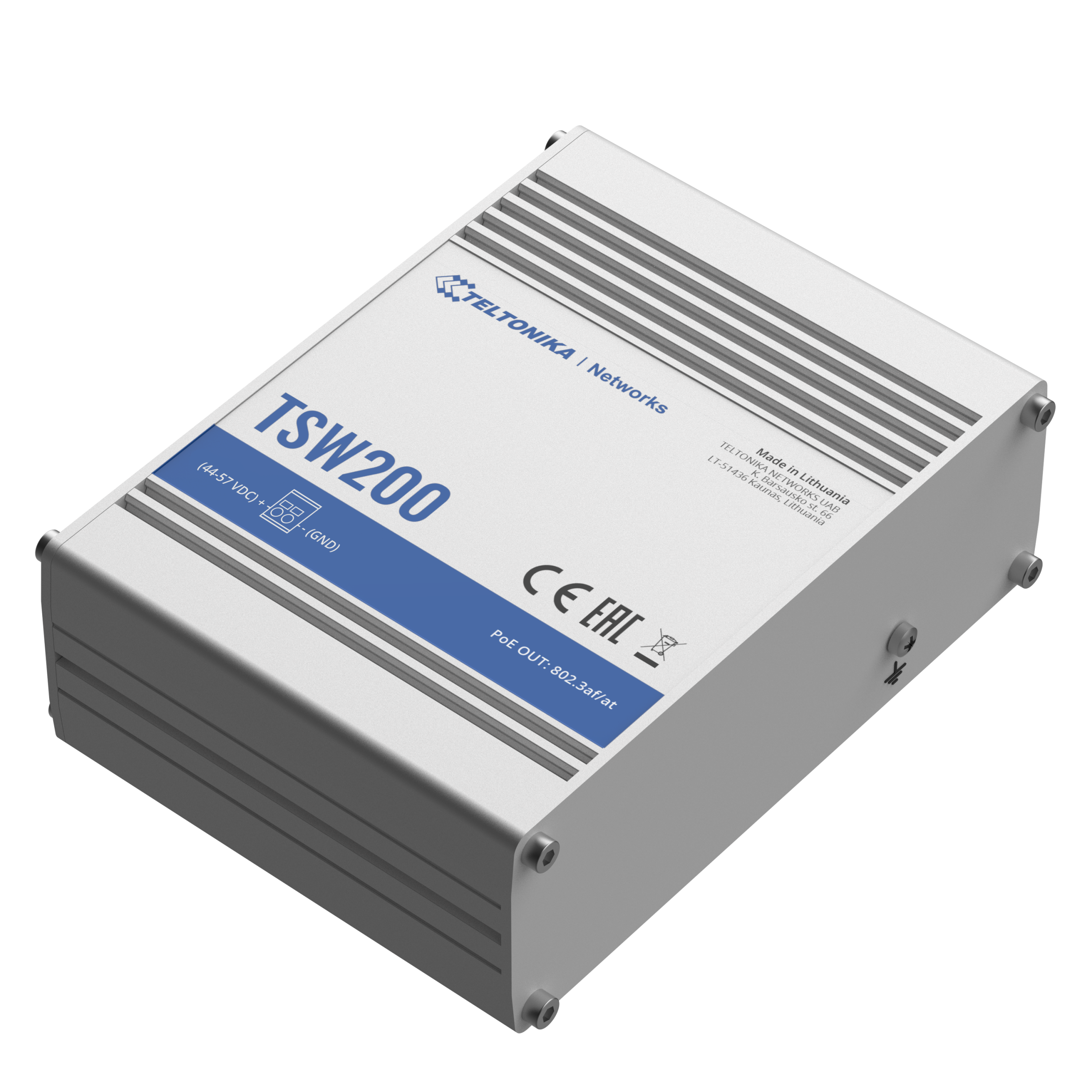

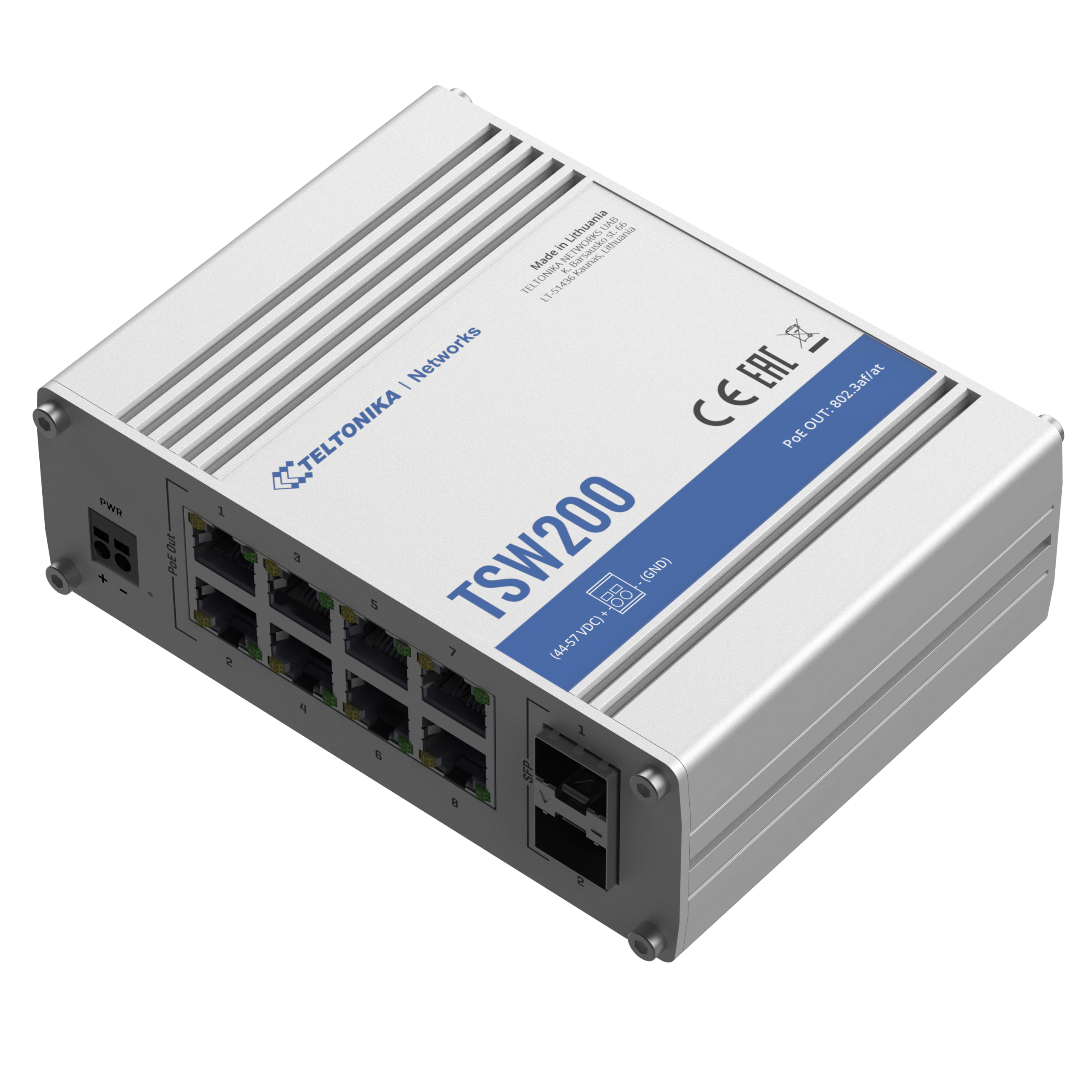

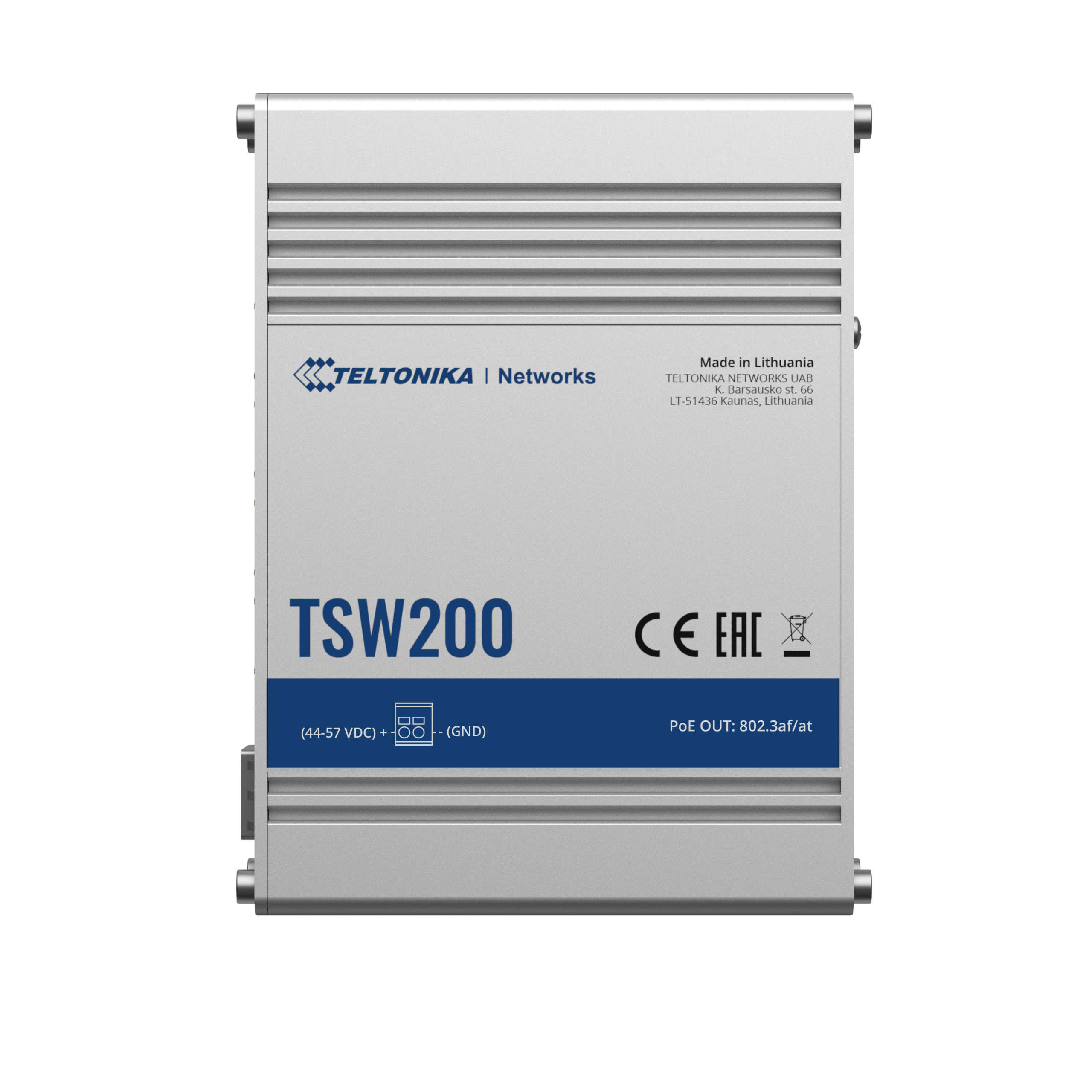

Teltonika 8 Port Gigabit PoE+ with 2 SFP Ports 240W Switch
Features:
-
LAN
8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
-
Fiber
2 x SFP ports
-
PoE ports
Port 1- 4, Port 1 – 8
-
PoE standards
802.3af and 802.3at
-
PoE Max Power per Port (at PSE)
30 W
-
Total PoE Power Budget (at PSE)
240 W
-
Bandwidth (Non-blocking)
20 Gbps
-
Packer buffer
128 KB
-
MAC address table size
2K entries
-
Connector
2-pin industrial DC power socket
-
Input voltage range
7-57 VDC
-
Power consumption
1,81 W/5.5 W/245.5 W
-
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
-
Fiber
2 x SFP ports
-
Status LEDs
1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
-
Power
1 x 2-pin industrial DC power socket
-
Other
1 x Grounding screw
-
Casing material
Full aluminum housing
-
Dimensions (W x H x D)
132 x 44.2 x 95.1 mm
-
Weight
146.5 g
-
Mounting options
DIN rail or wall mounting (additional kit needed), flat surface placement
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
10% to 90% non-condensing
-
Ingress Protection Rating
IP30
