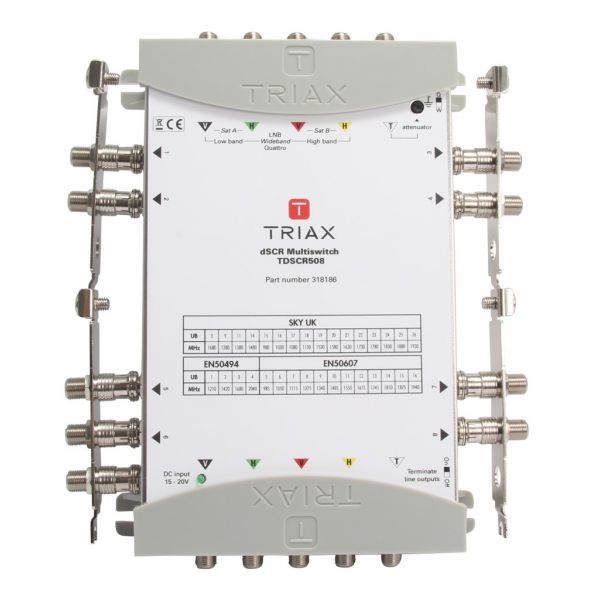

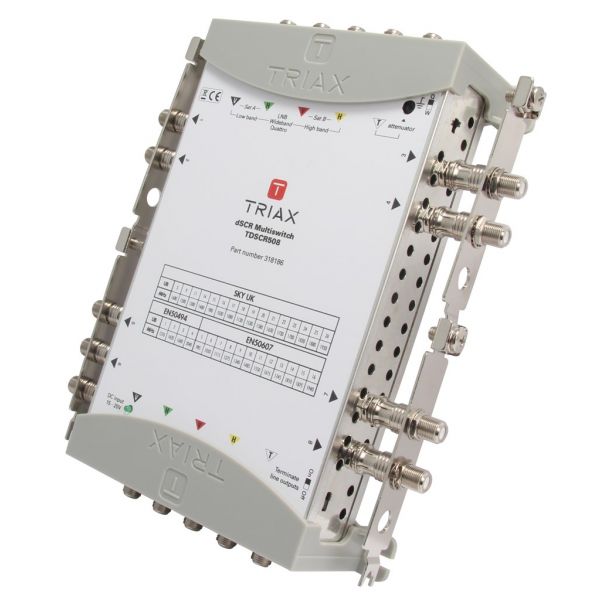

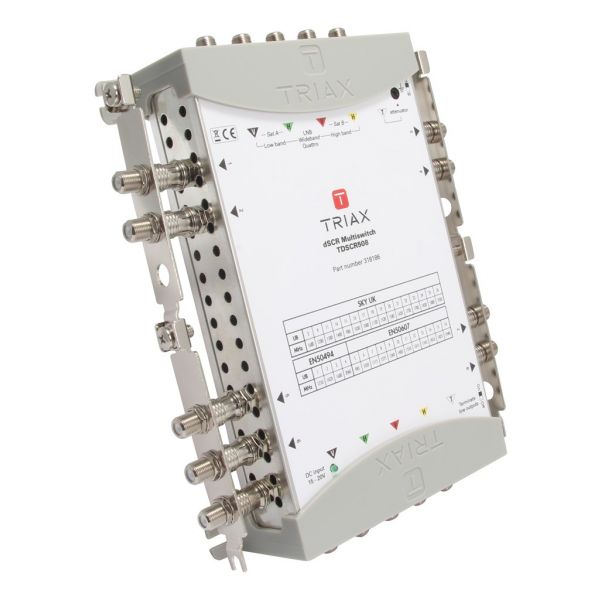

Triax DSCR 8 Way Sky Q Multiswitch
TdSCR 508
The only switch you need
Independent outputs for legacy or dSCR mode; can be used as cascade, standalone or terminated.
European IRS Certification Scheme
The full range of dSCR multiswitches are certified to the EICS scheme demonstrating the high quality of the solution and compatibility with all major satellite and TV platforms.
Ultimate flexibility
With your choice of 4, 8, 12 or 16 outputs, TRIAX multiswitches are compatible with Quattro and Wideband LNBs, and support 1 or 2 satellite positions.
Trust TRIAX
With 70 years of reliability and innovation, we ensure you live up to your own customer promises.
Reduce costs
Market-leading low power consumption means you can build large, cascadable systems with a single PSU connected at any point in the system.
Easy planning and installation
Simple integration with existing TRIAX solutions; 5x Quick F connectors included.
Safety first
Earth Bars included for all subscriber outputs
ELECTRICAL
|
Impedance |
75 Ω |
CONNECTORS
|
Number of inputs |
4 SAT (1x quattro + 2x wideband) + 1 TERR |
|
Number of outputs |
8 |
CHARACTERISTICS
|
Input level |
70…100 (-38 to -8dBm) dBµV |
|
Output level |
83 (-26dBm)/ 83 (-26dBm) with 2 carriers dBµV |
|
LNB power supply max. |
15…20 V/DC |
|
LNB current max. |
1000 mA |
FREQUENCY RANGE
|
Frequency range TER |
40…790, active MHz |
|
Frequency range SAT |
dSCR/legacy: 950…2150 – Wideband: 290…2340 MHz |
LOSS
|
Through loss TER |
-3 +/-2dB dB |
|
Through loss SAT |
-4 +/-2dB dB |
|
Insertion loss – TER |
4 +/-2dB dB |
|
Attenuation TER |
0…20 dB |
ISOLATION
|
Isolation cross polarisation H/V |
25 dB |
RETURN LOSS
|
Return Loss |
10 dB |
OPERATIONAL
|
DC Current consumption |
70 mA |
|
PSU/adapter INFO |
Optional |
|
Temperature – operating |
-20…50 °C |
MECHANICAL
|
Dimensions carton (H x D x W) |
191x237x52 mm |
|
Packing QTY |
1 |
|
Packaging Height |
0.058 m |
|
Packaging Width |
0.260 m |
|
Packaging Depth |
0.254 m |
|
Packaging Volume |
0.004 m3 |
|
Net Weight |
1.060 kg |
|
Tara Weight |
0.190 kg |
|
Total Weight |
1.250 kg |
|
Remarks |
SKY UK, EN50607, EN50494 (automatic selection) |
